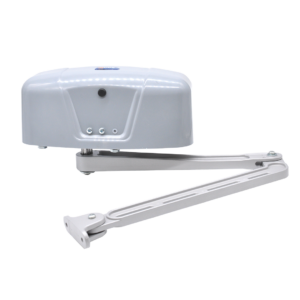

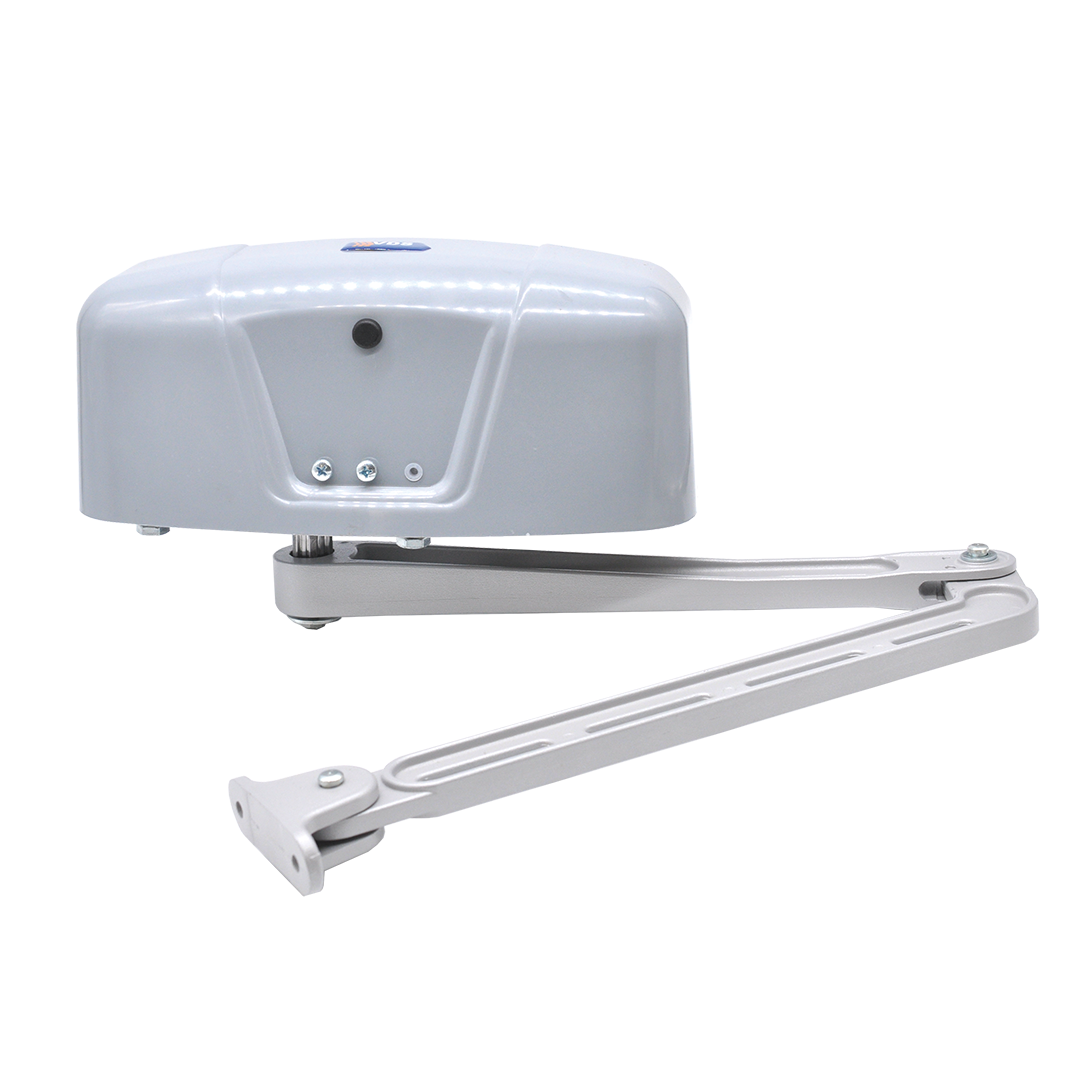

TEKNO – Electromechanical Operator for Swing Gates 230V

  • Leaf lenght up to 3,5 mt
  • Gearmotor made of die-cast aluminum
  • Gears in steel, cast iron and bronze machined from solid
  • Articulated anti-shear arm in aluminum, powder coated
  • Maximum silent operation
  • High performance electric motor
  • Mechanical release with triangular key
  • Electric limit switch for opening and closing
  • Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust
  • 120 ° opening
  • Suitable for applications on large pillars
  • Single version for right and left door
  • Control panel with obstacle detection
  • Anti-squashing system * (EN 12453)
  • Slowing down function * (EN 12453)
  • Power supply 230v – 24v

PERFORMANCE REQUIREMENTS

  • Operating cycle semi-intensive
  • Frequency of use 50% (230Vac)
  • Opening 15 sec
  • Thrust 250 N

KIT

Kit Tekno – 1 Leaf 230V

Kit Tekno – 2 Leaves 230V

Compositions

Kit Tekno – 1 Leaf 230V

Kit Tekno – 2 Leaves 230V
