- Net Passage Width from 600mm up to 2900mm
- In compliance with EN16OO5

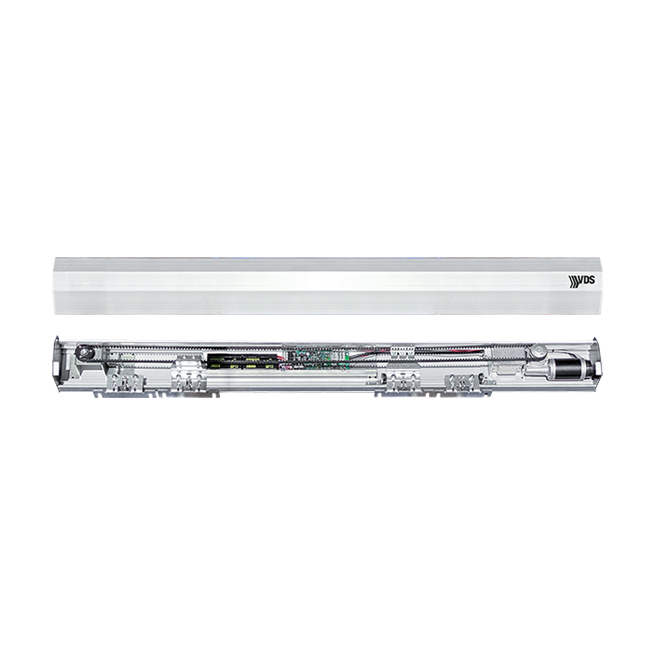

- Reversible 1 motor automation for sliding doors
- Suitable for offices, supermarkets and shops with hig transit
- Rapid and silent movements
- Easy and rapid installation
- Motor group with 100 pulses optical encoder
- Coverall 1 leaf with maximum weight of 120 KG
- Coverall 2 leaves with maximum weight of 80 + 80 KG
Coverall 1 leaf with 120 kg max weight
| Cod | Coverall lenght | Net passage width | Leaf lenght |
| 501/1370 | 1370 | 600 | 700 |
| 501/1570 | 1570 | 700 | 800 |
| 501/1770 | 1770 | 800 | 900 |
| 501/1970 | 1970 | 900 | 1000 |
| 501/2370 | 2370 | 1100 | 1200 |
| 501/2770 | 2770 | 1300 | 1400 |
| 501/3170 | 3170 | 1500 | 1600 |
| 501/3570 | 3570 | 1700 | 1800 |
| 501/3970 | 3970 | 1900 | 2000 |
| 501/4370 | 4370 | 2100 | 2200 |
| 501/4770 | 4770 | 2300 | 2400 |
| 501/5170 | 5170 | 2500 | 2600 |
| 501/5570 | 5570 | 2700 | 2800 |
| 501/5970 | 5970 | 2900 | 2900 |
Coverall 2 leaves with 80+80 kg max weight
| Cod | Coverall lenght | Net passage width | Leaf lenght |
| 502/1720 | 1720 | 800 | 2×450 |
| 502/1920 | 1920 | 900 | 2×500 |
| 502/2320 | 2320 | 1100 | 2×600 |
| 502/2720 | 2720 | 1300 | 2×700 |
| 502/3120 | 3120 | 1500 | 2×800 |
| 502/3520 | 3520 | 1700 | 2×900 |
| 502/3920 | 3920 | 1900 | 2×1000 |
| 502/4320 | 4320 | 2100 | 2×1100 |
| 502/4720 | 4720 | 2300 | 2×1200 |
| 502/5120 | 5120 | 2500 | 2×1300 |
| 502/5520 | 5520 | 2700 | 2×1400 |
| 502/5920 | 5920 | 2900 | 2×1500 |
