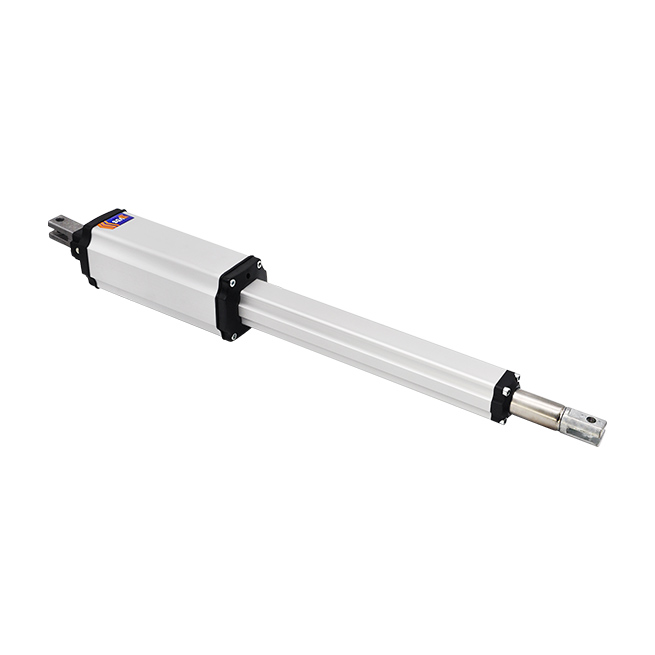

- Leaf length from 1.80 mt up to 3.50 mt
- Reversible
- Sturdy aluminum structure
- Rod stroke mm 300 – mm 400 – mm 600
- Stainless steel rod with dust scraper
- Very quiet operation
- Thermal cut out 140°
- Manual release with customized key
- Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
- 120° opening
- Quick installation with multi-position brackets and cover for brackets in technopolimers
- Anti-squashing system (en 12453)
- Slowing down function (en 12453)
- Power supply 230 vac
Models and Codes
- COD. 100053 | PM1-300: Irreversible – Stroke 300 mm – Leaf length up to 1.80 mt
- COD. 100053/1 | PM1-400: Irreversible – Stroke 400 mm – Leaf length up to 2,50 mt
- COD. 100053/13 | PM1-600: Irreversible – Stroke 600 mm – Leaf length up to 3,50 mt
Performance requirements
- Operating cycle semi-intensivo
- Frequency of use 50%
- Opening 15 – 25 – 30 sec.
- Thrust 1500N
Technical features
| POWER SUPPLY | 230 VAC |
| LEAF WEIGHT | 250 KG |
| LEAF LENGHT | 3,50 M |
| ENGINE RPM | 800 RPM |
| AVERAGE ABSORPTION | 1 A |
| ABSORBED POWER | 250 W |
| LIMIT SWITCH | NO |
| CONDENSER | 12,5 UF |
| OPERATOR WEIGHT | 7,5 KG |
| NOISE LEVEL | < 30 DBA |
| ENVIROMENTAL CONDITIONS | -20/+55° C |
| DEGREE OF PROTECTION | IP55 |
