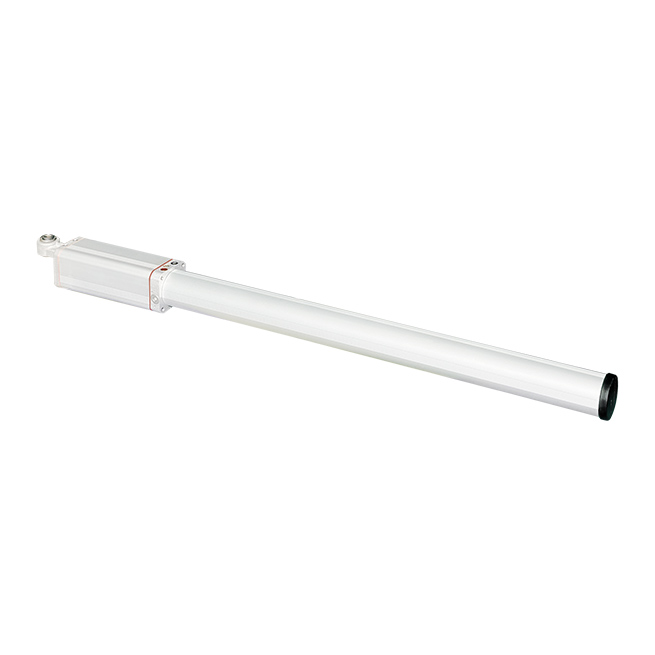

PHV – Hydraulic Swing Gates Automation

  • Reversibile/Irreversibile
  • Leaf length from 4 mt up to 7 mt
  • Anta Max 4mt (phv 240) – 7mt (phv 360)
  • Sturdy aluminum and die-casting structure
  • Rod stroke mm 242 (phv 240) – mm 362 (phv 360)
  • Steel rod rectified and chromed 20 mm
  • Very quiet operation
  • Electric motor in bath of oil
  • Valve adjustement for reversibility or irreversibility
  • Hydraulic adjustement for thrust
  • Hydraulic slow-down adjustement in closure
  • Aluminum rod cover included
  • Manual release with key
  • 90° opening
  • Quick installation with multi-position brackets
  • Power supply 230Vac

Models and Codes

  • 100021  |  PHV 240: Irreversible / Reversible – Rod stroke 242 MM – Arms up to 4 mt
  • 100022  |  PHV 360: Irreversible / Reversible – Rod stroke 362 MM – Arms up to 7 mt

Performance requirements

  • Operating cycle intensivo
  • Frequency of use 100%
  • Thrust 6252/7793N

Technical features

PHV 240
PHV 360
POWER SUPPLY 230 Vac 230 Vac
LEAF WEIGHT 600 KG 800 KG
LEAF LENGTH 4 M 7 M
MAX PRESSURE 50 BAR 50 BAR
AVERAGE ABSORPTION 1,3 A 1,1 A
ABSORBED POWER 276 W 280 W
CONDENSER 16 UF 16 UF
OPERATOR WEIGHT 12 KG 13,5 KG
NOISE LEVEL < 30 DBA < 30 DBA
ENVIRONMENTAL CONDITIONS -15/+80° C -15/+80° C
DEGREE OF PROTECTION 100° 100°



Electric Manual 230V

Spare Parts

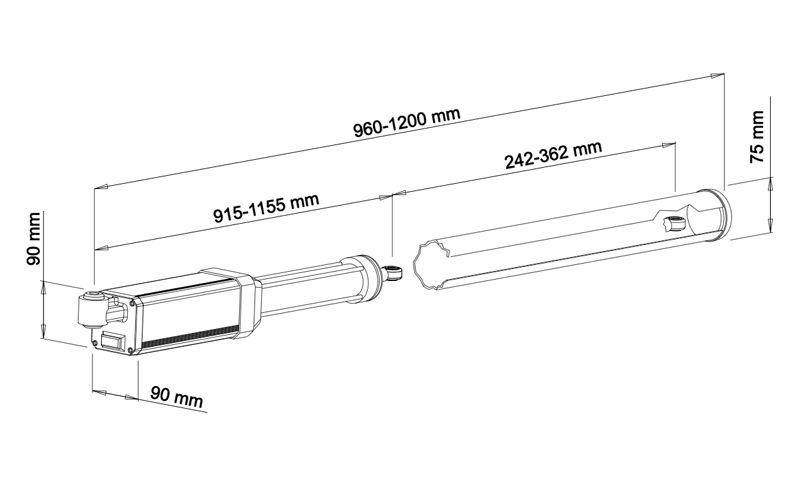

Dimensions

Oil Refill

Pdf

Kit 2 leaves

Kit 1 leaf

Composizioni

Kit 2 leaves

Kit PHV 240

Kit PHV 360

Kit 1 leaf

Kit PHV 240

Kit PHV 360
