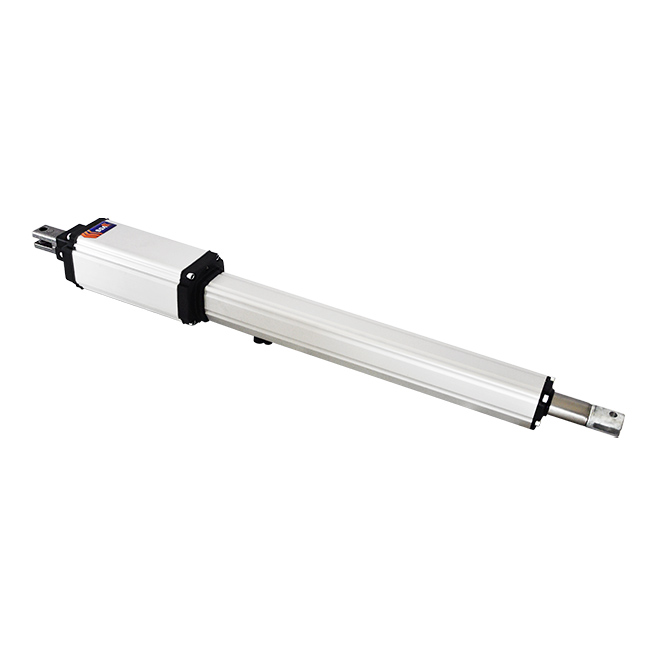

LINEAR 11 – Electromechanical Operator for Swing Gates 230V-24V

  • Leaf length from 2.50 mt up to 3 mt
  • Sturdy aluminum structure
  • Rod stroke mm 400 – mm 500
  • Stainless steel rod
  • Optional limit switches
  • Very quiet operation
  • High-performance electric motor
  • Thermal cut out 140°
  • Manual release with key
  • Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
  • 120° opening
  • Quick installation with multi-position brackets and cover for brackets in technopolimers
  • Anti-squashing system (en 12453)
  • Slowing down function (en 12453)
  • Power supply 230 v – 24 v
  • Optional kit battery backup

Models and Codes

  • 100018  |  LINEAR 11 400 230V: Irreversible – Rod stroke 400 mm – Leaf lenght up to 2,50 mt
  • 100018/5  |  LINEAR 11 500 230V: Irreversible – Rod stroke 500 mm -Leaf lenght up to 3mt
  • 100018/24  |  LINEAR 11 400 24V: Irreversible – Rod stroke 400 mm – Leaf lenght up to 2,50 mt
  • 100018/7  |  LINEAR 11 500 24V: Irreversible – Rod stroke 500 mm – Leaf lenght up to 3mt

Performance requirements

  • Operating cycle semi-intensivo 230Vac, intensivo 24Vcc
  • Frequency of use 50% (230Vac) – 90% (24Vcc)
  • Opening 20 – 25 sec.
  • Thrust 2000N

Technical features

LINEAR 11 – 230 Vac LINEAR 11 – 24 Vcc
POWER SUPPLY 230 Vac 24 Vcc
LEAF WEIGHT 200 KG 200 KG
LEAF LENGTH 3 M 3 M
ENGINE RPM 1400 RPM 1500 RPM
AVERAGE ABSORPTION 1 A 3 A
ABSORBED POWER 200 W 50 W
STANDARD LIMIT SWITCH OPTIONAL OPTIONAL
CONDENSER 16 UF
OPERATOR WEIGHT 6,5 KG 6,5 KG
NOISE LEVEL < 30 DBA < 30 DBA
ENVIRONMENTAL CONDITIONS -20/+55° C -20/+55° C
DEGREE OF PROTECTION IP55 IP55



Electric Manual 24V

Electric Manual 230V

Spare Parts

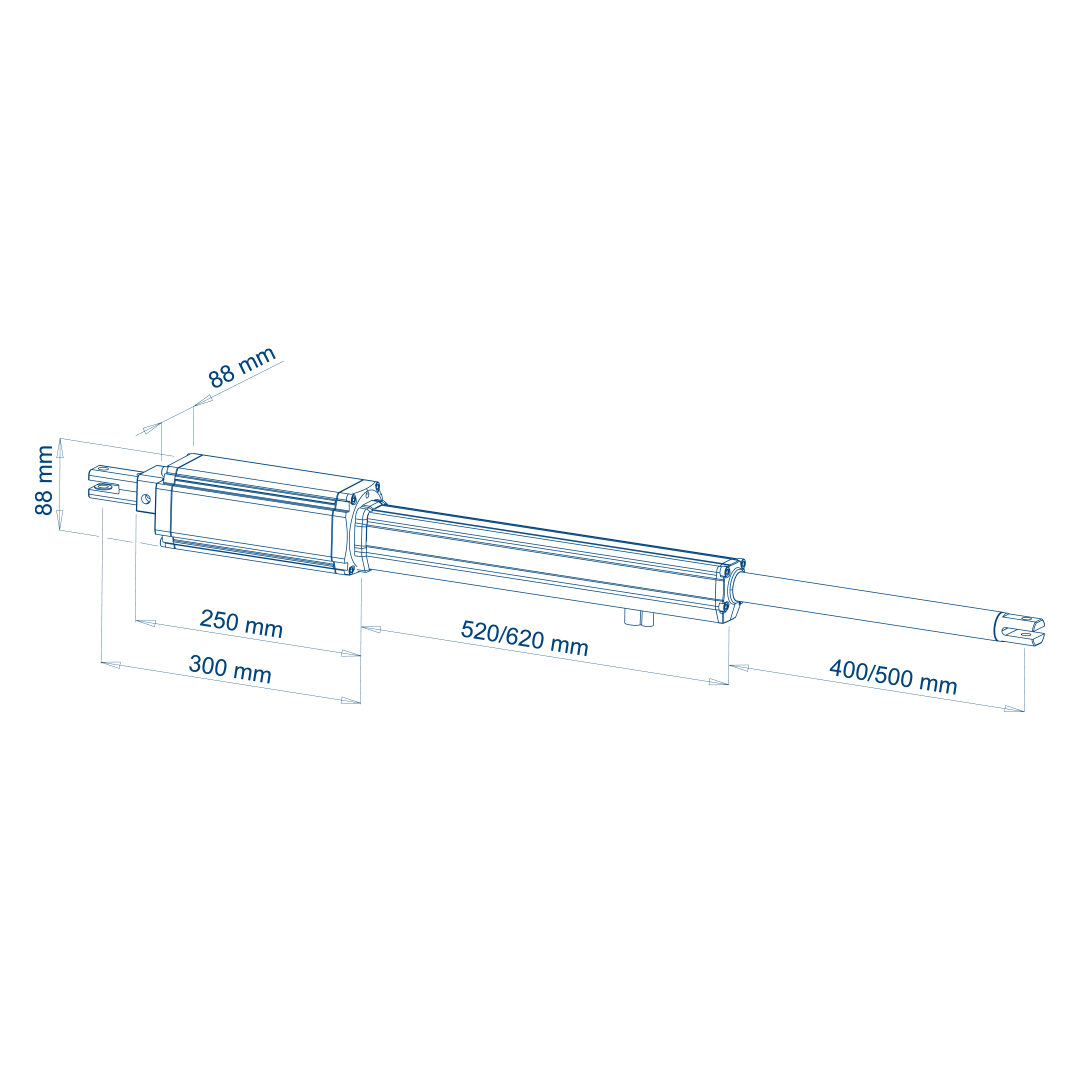

Dimensions

Pdf

Kit Linear 11 – 1 Leaf 230V

Kit Linear 11 – 1 Leaf 24V

Kit Linear 11 – 2 Leaves 230V

Kit Linear 11 – 2 Leaves 24V

Compositions

Kit Linear 11 – Leaf 230-400

Kit Linear 11 – 1 Leaf 230-500

Kit Linear 11 – 1 Leaf 24-400

Kit Linear 11 – 1 Leaf 24-500

Kit Linear 11 – 2 Leaves 230-400

Kit Linear 11 – 2 Leaves 230-500

Kit Linear 11 – 2 Leaves 24-400

Kit Linear 11 – 2 Leaves 24-500
