- Leaf length from 2.50 mt up to 3 mt
- Sturdy aluminum structure

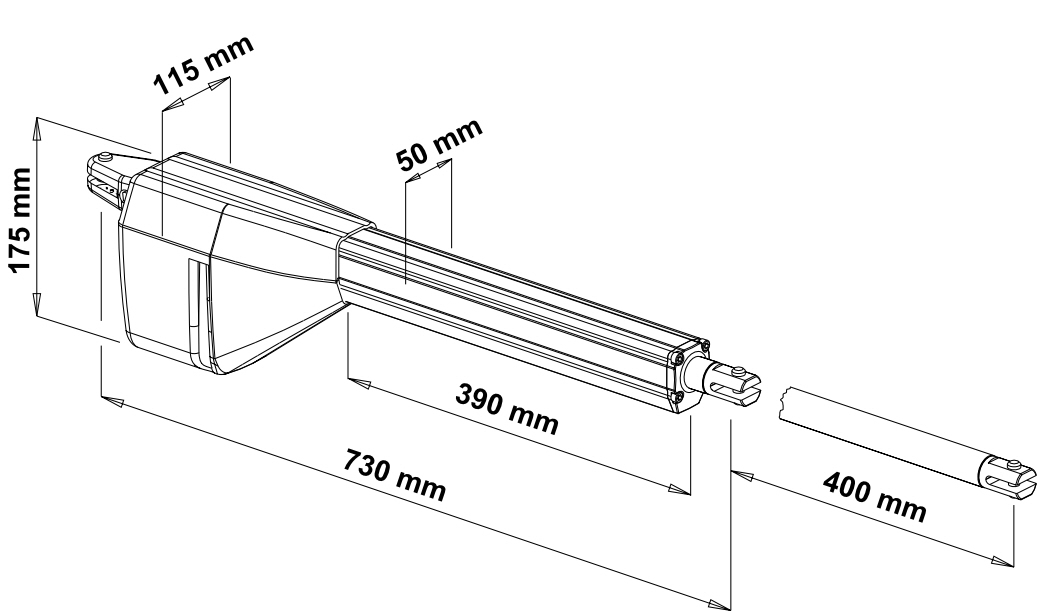

- Rod stroke mm 400
- Stainless steel rod
- Optional limit switches
- Very quiet operation
- High-performance electric motor
- Thermal cut out 140°
- Manual release with key
- Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
- 120° opening
- Quick installation with multi-position brackets and cover for brackets in technopolimers
- Anti-squashing system (en 12453)
- Slowing down function (en 12453)
- Power supply 230 v – 24 v
- Optional kit battery backup
Models and Codes
- 11020 | EGO 400 230V: Irreversible – Rod stroke 400 mm – Leaf lenght up to 2,50 mt
- 11021 | EGO 500 230V: Irreversible – Rod stroke 500 mm – Leaf lenght up to 3 mt
- 11020/4 | EGO 400 24V: Irreversible – Rod stroke 400 mm – Leaf lenght up to 2,50 mt
- 11021/4 | EGO 500 24V: Irreversible – Rod stroke 500 mm – Leaf lenght up to 3 mt
Performance requirements
- Operating cycle semi-intensivo 230Vac, intensivo 24Vcc
- Frequency of use 50% (230Vac) – 90% (24Vcc)
- Opening 20 – 25 sec.
- Thrust 2000N
Technical features
| EGO 230 VAC | EGO SC 24 VCC | |
| POWER SUPPLY | 230 VAC | 24 VCC |
| LEAF WEIGHT | 200 KG | 200 KG |
| LEAF LENGTH | 3 M | 3 M |
| ENGINE RPM | 1400 RPM | 2800 RPM |
| AVERAGE ABSORPTION | 1 A | 3 A |
| ABSORBED POWER | 200 W | 50 W |
| STANDARD LIMIT SWITCH | OPTIONAL | OPTIONAL |
| CONDENSER | 10 UF | – |
| OPERATOR WEIGHT | 6,5 KG | 6,5 KG |
| NOISE LEVEL | < 30 DBA | < 30 DBA |
| ENVIRONMENTAL CONDITIONS | -20/+55° C | -20/+55° C |
| DEGREE OF PROTECTION | IP55 | IP55 |
